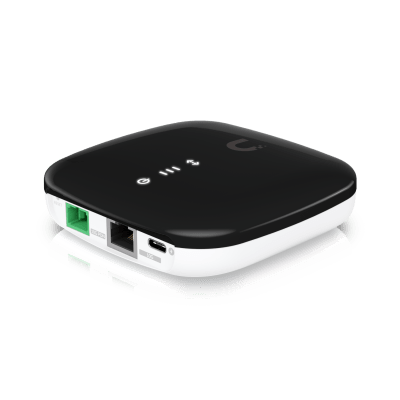

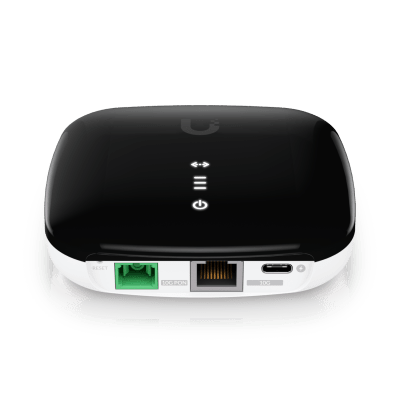

    Ubiquiti Fiber XGS (UISP-FIBER-XGS) — ONU de 10 Gbps simétricos, Alcance de hasta 20 km disponible en Sierra Store. Envío gratis a todo México. Compra en línea con garantía y soporte técnico.

    Ubiquiti UISP Fiber XGS (UISP-FIBER-XGS)

    Fiber XGS

    Modelo: UISP-FIBER-XGS

    Unidad de red óptica (ONU) que ofrece 10 Gbps simétricos y alcance de hasta 20 km en enlaces XGS-PON. Ideal para suscriptores o backhaul de alta capacidad.

    Especificaciones
    Mecánicas
    • Dimensiones: 100 × 100 × 27 mm (3.9 × 3.9 × 1.1')
    • Peso: 220 g (0.49 lb)
    • Material del gabinete: Policarbonato estabilizado UV
    Puertos y gestión
    • WAN PON: (1) SC/APC, ITU-T G.9807 XGS-PON
    • LAN: (1) RJ45 100/1G/2.5G/5G/10G MbE
    • Gestión: UISP (v1.5.7 o superior), Ethernet in-band
    • Botón: (1) Restablecimiento de fábrica
    Parámetros ópticos
    • Longitudes de onda: TX 1270 nm / RX 1577 nm
    • Alcance físico: hasta 20 km
    • Rango TX normal: 4 a 9 dBm
    • Rango RX normal: −9 a −26 dBm
    • Línea: NRZ aleatorizada (Scrambled NRZ)
    Rendimiento
    • Tasa n/l bloqueos: 9.95 Gb/s bajada y subida
    • Cumplimiento NDAA: Sí
    • Certificaciones: CE, FCC, IC
    Energía y ambiente
    • Consumo máximo: 8 W
    • Método: USB-C 5 Vcc 3A
    • Fuente: Adaptador 5 Vcc 3 A
    • Temp. operación: −15 a 45 °C (5 a 113 °F)
    • Humedad: 10 a 95 % sin condensación
    Indicadores LED
    • Power: blanco encendido (ON)
    • Ethernet: blanco fijo (enlace), parpadeo (actividad), apagado (sin enlace)
    • PON (3 LEDs):
    • • 1 Naranja: Señal muy baja (< −27 dBm)
    • • 1 Blanco: Baja (≥ −27 dBm)
    • • 2 Blancos: Buena (≥ −24 dBm)
    • • 3 Blancos: Buerte (≥ −12 dBm)
    • • 1 Naranja + 2 Blancos: Demasiado fuerte (≥ −9 dBm)
    • • 3 Naranjas: Sin señal
